The series of M5 circle connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

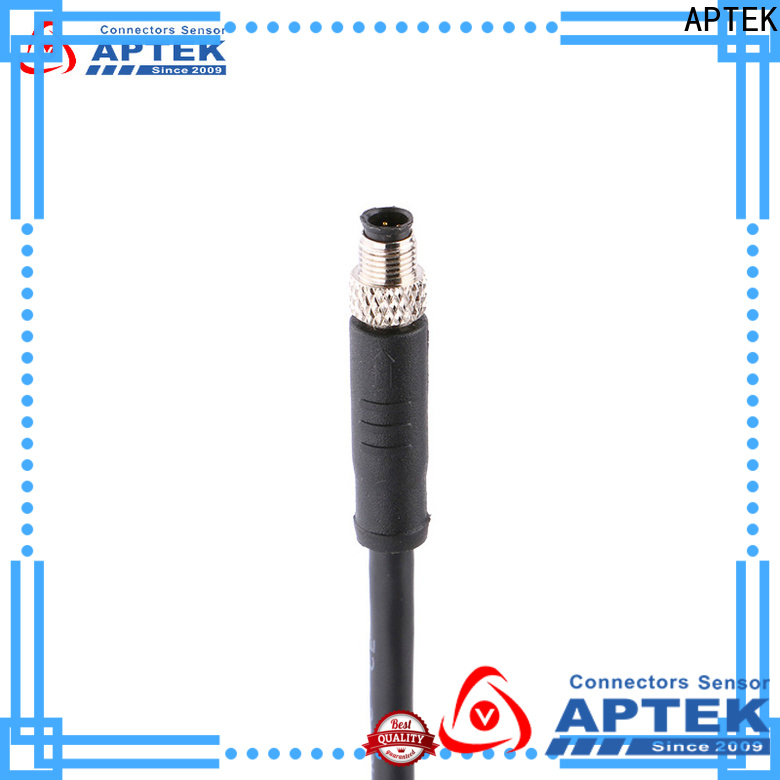

Wholesale m5 circular connector m5 supply for industry-1

Wholesale m5 circular connector m5 supply for industry-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-105
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length

Level and performance

c******q

APTEK m5 circular connector has gone through a series of on-site tests. These tests include load testing, impact testing, arm&leg strength testing, drop testing, and other relevant stability and user testing. DMS Seals implements and optimizes its quality control systems

k******s

APTEK m5 circular connector undergoes rigorous quality control procedures, including inspection of flaws and flaws in the fabric, ensuring accurate color tones and testing the softness of the final product. Seal we produced has applications in a wide range of fields

v******n

In the manufacturing process, the fabric of APTEK m5 circular connector is treated to improve its strength and dye absorption capacity. The R&D teams have the ability to design and develop seals for various of complicated working condition of sealing system

d******t

APTEK m5 female cable connector will be tested in terms of various aspects. They are fabrics breathability, heat retention property, moisture-absorbing performance, washing resistance, and colorfastness. DMS o-ring seal has advanced machines and equipment for its production

w******a

A wide range of product inspections were carried out for APTEK m5 female cable connector. In many cases, test standards such as color fastness tests go far beyond applicable national and international standards. To reduce costs with high-efficiency work is the DMS's purpose

k******u

m5 circular connector Excellent material selection, full of materials, exquisite workmanship, high quality, with the advantages of wear resistance, drop resistance, corrosion and moisture resistance, no deformation and no rust, etc., reliable quality and durable.
