The series of M5 circular connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

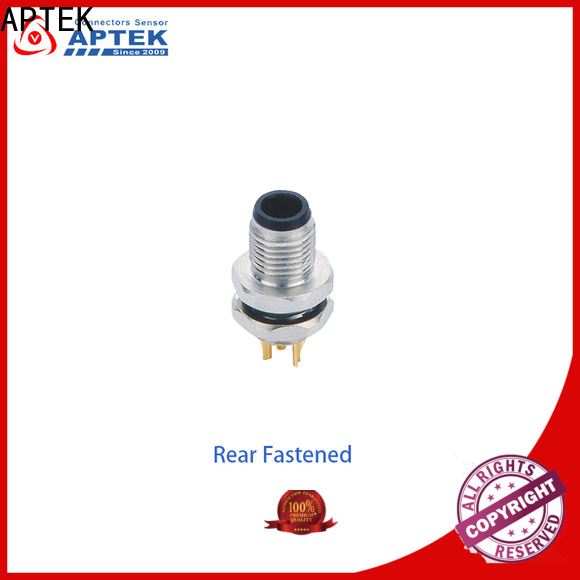

APTEK panel circular connectors factory for engineering-1

APTEK panel circular connectors factory for engineering-2

General Information

Connector Serries	M5
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-105
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	Solder Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length
04 pins	A-Coding	Solder Version	1A	60V	60V	26AWG	0.14	PVC	Customized cable ending and length

Level and performance

f******i

APTEK circular connectors will be check to guarantee no electrical failure. It has passed the power-on test, energy-efficient test, and anti-aging test. It meets a variety of low-to medium-volume printing applications

h******w

APTEK m5 female connector is developed with complicated electrical or electronic technologies. CNC technology, the microelectronic technique, and sensor technology have been adopted into its development by mechanical engineers. It can be easily put in a corner without taking up too much space

l******a

APTEK m5 female connector is manufactured by complying with a variety of electrical standards, including electrical safety, electromagnetic compatibility (EMC) and the chemical composition of materials. It meets a variety of low-to medium-volume printing applications

m******j

The development of APTEK m5 female connector is the soul of wit of our R&D team. It is developed with great performance and functionality by the R&D staff who have experience in energy conservation and consumption reduction, the knowledge of transformer and motor, and the wiring installation. The sound and error alarm can minimize work errors

q******e

APTEK m5 female connector is a luxury to enjoy every day and night. Using time-honored techniques and crafted of the finest materials, it is manufactured in our own factory in China. It is less likely to occur the paper jamming problem

e******d

This product can last for a long time. It has a sturdy frame that can maintain its shape for years without any variation in warping or twisting. This product is advantageous in lightweight and portability
