1. The raw materials of APTEK m12 round cable connectors are highly secured by selecting reliable suppliers. APTEK is located in Zhongshan City which is one of the Four Little Tigers in Guangdong Province
2. Whether the motivations are economic, environmental, or personal, the benefits of this product will have something to offer for everyone. Founded in 2009, APTEK is a professional manufacturer of industrial waterproof connectors
3. The product is not prone to have rot and mold problems even it gets wet frequently. All its components and parts are made of waterproof materials with high density. APTEK has guaranteed the applications of connectors in food & beverage, chemicals, wood, LED lighting, etc
4. The product is stable enough. It utilizes grooves and interlocking steel pins for positive alignment of adjacent track sections and has been reinforced overhead by drop rod brackets. APTEK has a wide range of metric circular connectors and cable assembly that fit almost all standards
5. The product does not tend to accumulate bacteria and mildew in the corners. Its materials are waterproof, hence, moisture and liquid which contains bacterium will not seep into its inner structure or the surface corner. APTEK produces connectors with precision, quality, and competitiveness

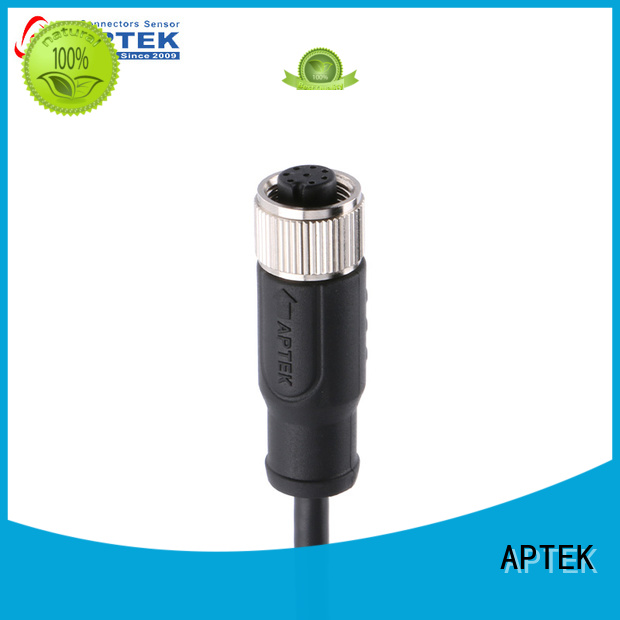

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts

Available Coding

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

02 pins

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white

Customized cable ending and length

03 pins

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
3.BU blue
4.BK black

04 pins

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black

05 pins

60V

24AWG

0.35

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey

06 pins

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink

08 pins

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red

12 pins

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black

17 pins

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange

Level and performance
