The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

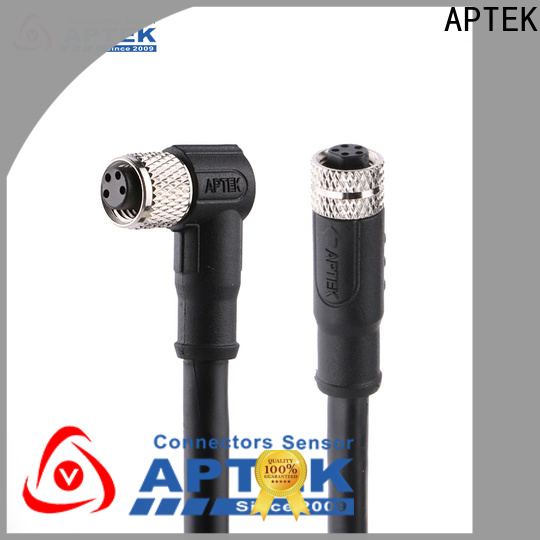

APTEK circular m8 cable connector manufacturers for packaging machine-1

APTEK circular m8 cable connector manufacturers for packaging machine-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	3A	60V	60V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.WH white 2.BN brown 3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

i******g

The key performance of APTEK m8 female connector has been taken into considerations during production such as storage capacity (energy density), cycle life, rate capability, and self-discharge. The product can be mounted in any position

j******r

The processes of APTEK m8 cable connector involve blending the raw materials, specialized grinding of the raw materials, inert atmosphere firing of the raw materials, and a final grind of the finished product. It has the capability of ultimate pressure, flow output horsepower

z******a

APTEK m8 female connector is subjected to different testing standards (electrical safety, temperature, shock, and vibration tests) in various environmental conditions (humidity, temperature, pressure). The product has reliable performance and simple access to the operation

u******p

APTEK m8 female connector has to be tested by an independent test laboratory that must provide proof that the materials meet the requirements of the storage battery industry. It has a small volume and a simple structure

s******y

The production of APTEK m8 female connector involves a wide range of procedures, ranging from metallic elements preparation, electrode coating, cell Assembly, formation and process control. It helps save costs and prevent contamination

l******e

m8 cable connector Reasonable design, compact structure, excellent performance, stable operation, long service life, wide application range, widely used in food and beverage industry, pharmaceutical industry, chemical processing industry, chrome plating industry, wastewater treatment industry, etc.
