APTEK circular m8 cable connector supply for industry

APTEK circular m8 cable connector supply for industry

Brand
APTEK
Connector Series
M8
Locking type
Fix Screw
Mounting type
Front & Rear Mount
Standard
IEC 61076-2-104
Coupling nut/screw
Brass with nickel plated
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

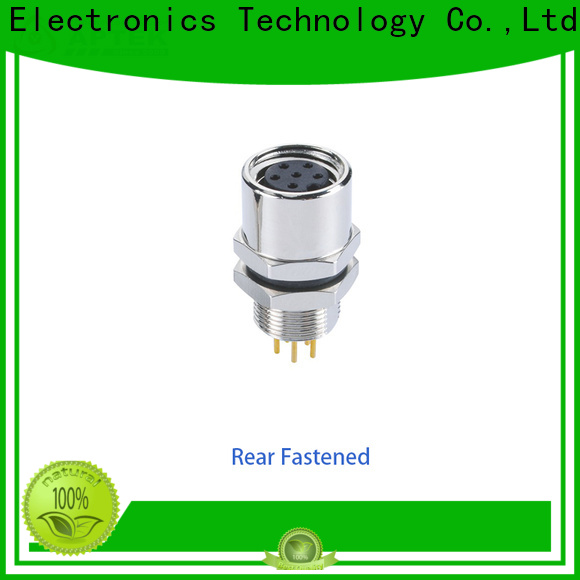

APTEK circular m8 cable connector supply for industry-1
APTEK circular m8 cable connector supply for industry-2



General Information


Connector SerriesM8
GenderFemale
Locking typeFix screw
Mounting typeStraight
StandardIEC 61076-2-104
Ambient temperature-25℃ ~ +80℃
Connector insertPA
Connector contactsBrass with gold plated
Coupling nut/screwBrass with nickel plated
Insulation resistance≥100 MΩ
Contact resistance≤ 5 mΩ
EMI ShieldingNon-Shielded
IP ratingIP 67 in locked condition
Locking DesignAnti-Vibration


Electrical data & Mechanical data


ContactsCoding

Wire

termination

Rated currentVoltageWire gauge/sizeWire insulationCable ending & length
A/CD/CAWGmm²
03 pins

APTEK circular m8 cable connector supply for industry-3

A-Coding

PCB

Version

3A60V

60V

24AWG0.25PVC

Customized

cable ending and length

04 pins

APTEK circular m8 cable connector supply for industry-4

A-Coding

PCB

Version

3A30V30V24AWG0.25PVC
05 pins

APTEK circular m8 cable connector supply for industry-5

B-Coding

PCB

Version

3A30V30V24AWG0.25PVC
06 pins

APTEK circular m8 cable connector supply for industry-6

A-Coding

PCB

Version

1A30V30V26AWG0.14PVC

08

pins

APTEK circular m8 cable connector supply for industry-7

A-Coding

PCB

Version

1A30V30V26AWG0.14PVC


Level and performance



APTEK m8 cable connector is manufactured using a wide range of cutting-edge machines. They are cutting bed, cloth cutting machine, chain-blindstitch machine, flat sewing machine, needle lockstitch machine, ironing drawing, and baler.
APTEK panel mount circular connector has passed various tests. They are abrasion resistance testing, colorfastness testing, tear strength testing, flammability testing, etc.
APTEK panel mount circular connector is professionally manufactured. It is carried out by expert developers with mechanical design automation and the ability to solve practical engineering problems.
During the design phase of APTEK panel mount circular connector, many factors have been taken into account. These factors include design concepts, aesthetics, spatial layout, and safety.
APTEK m8 cable connector is manufactured after a series of complicated and sophisticated processes. They are mainly materials preparation, frame extruding, surface treating, and quality testing, and all these processes are carried out according to standards for exported furniture.
Internationally-certified quality: The product, tested by the authoritative third-party, has been approved to meet with the widely-recognized international quality standards.
