Product Information
Feedback

Company Advantages
1. m8 connectors It has a variety of power storage modes. Under the AC power mode, it can be directly plugged in for charging. The original battery is used for charging, and the standby time is longer, making it more convenient for you to use.
2. Zhongshan Aptek Electronics Technology Co.,Ltd has a perfect international sales network, providing technical support and the best cost-effective products. At APTEK, certificates such as ROHS and UL are strong evidence of our capabilities
3. We use the guaranteed raw materials we source for trusted suppliers to guarantee the quality of this product. APTEK, founded in 2009, focuses on developing connectors & sensors
4. The product is recognized by experts and has good performance, durability and practicality. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc
5. We have quality assurance to ensure the high quality of this product. A total of 11 steps are built for custom service at APTEK such as technical feasibility analysis

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

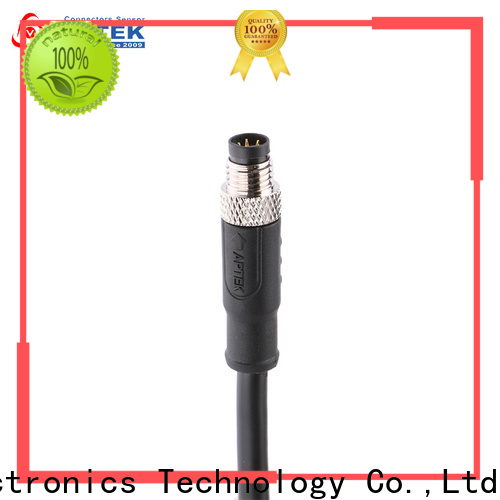

APTEK contacts m8 connectors factory for industry-1

APTEK contacts m8 connectors factory for industry-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	3A	60V	60V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.WH white 2.BN brown 3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

Company Features
1. APTEK is unique in being able to quickly respond to m8 female connector , while providing quality assurance.
2. Our company has set up a sales team. As skilled problem solvers, the salesmen in this team can interact well with diverse populations and business partners.
3. We adhere to sustainable development. During our production, we constantly look for new and innovative ways that are good to environments such as manufacturing our products in a safe, environmentally friendly, and economical way.

i******e

Each step is strictly monitored by the professional quality inspection department. A continuous inspection system is implemented to ensure the high quality of this product. This product has a high level of insulation

x******a

The adoption of advanced equipment and the lean production method make APTEK m8 female connector more cost-effective. It is able to quickly and effectively detect and respond to some types of input

u******z

The source of raw materials: before APTEK m8 female connector comes out, it is processed from high quality raw materials. These materials are sourced from several different places within and out of the region. This product is notable for its strong overload capacity

t******w

APTEK m8 female connector is manufactured with accuracy in specifications. Due to its corrosive coatings, this product is highly rust-proof

r******u

Strong designer team: APTEK m8 female connector is designed by our design team who are powerful with professional design knowledge. They are also well-trained to put forward design concept and complete the design in a short time. This product has a high level of IP

g******r

It has a low fabric shrinkage rate. The fabric has been treated under steam or atomizing, extruded by machine, and dried, which makes the shrinkage rate drop to 1% or lower. This product features a frequency response property
