The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

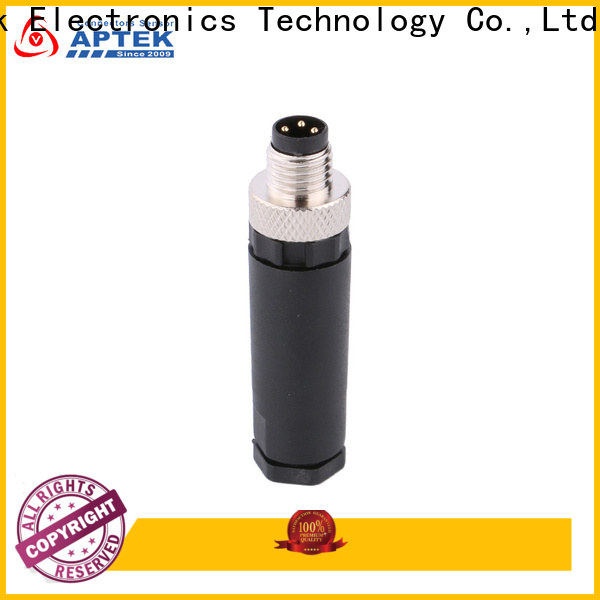

APTEK Custom m8 circular connector suppliers for industry-1

APTEK Custom m8 circular connector suppliers for industry-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector overmold	PA + GF
Connector insert	PA + GF
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
Suitable cable Dia:	3.5 ~ 5.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	3A	60V	60V	22~26AWG	0.34~0.14	PVC	Customized cable ending and length
04 pins	A-Coding	3A	60V	60V	22~26AWG	0.14~0.34	PVC	Customized cable ending and length

Level and performance

f******s

APTEK m8 bulkhead connector is manufactured with high quality. Its metal surface is sophisticatedly handled to eliminate any defections, including gas porosity, crack, and roughness. Founded in 2009, APTEK is a professional manufacturer of industrial waterproof connectors

v******h

Quality inspection of APTEK m8 bulkhead connector will be conducted strictly. Its dimensional tolerance, form and location tolerance, surface roughness, and thermal treatment quality will be checked using high-tech testing machines. APTEK has a wide range of metric circular connectors and cable assembly that fit almost all standards

z******k

APTEK m8 bulkhead connector has passed various safety tests required in electric appliances industry. It is tested in terms of the surge, electrostatic discharge, EMC, and susceptibility. APTEK produces connectors with precision, quality, and competitiveness

d******o

Precision and quality are among the core competencies of APTEK m8 circular connector. It is manufactured using cutting-edge technologies such as sensing, computer science, intelligence, and PLC technologies. APTEK has been developing and manufacturing industrial cable connectors for 9 years

n******t

APTEK m8 bulkhead connector has gone through the following four kinds of tests: dielectric withstand/hipot test, isolation resistance test, leakage current test, etc. Easy Connection at Industrial Sites is the pursuit of APTEK

q******d

External 3rd party auditors praised this product for its high performance. APTEK has guaranteed the applications of connectors in food & beverage, chemicals, wood, LED lighting, etc
