The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

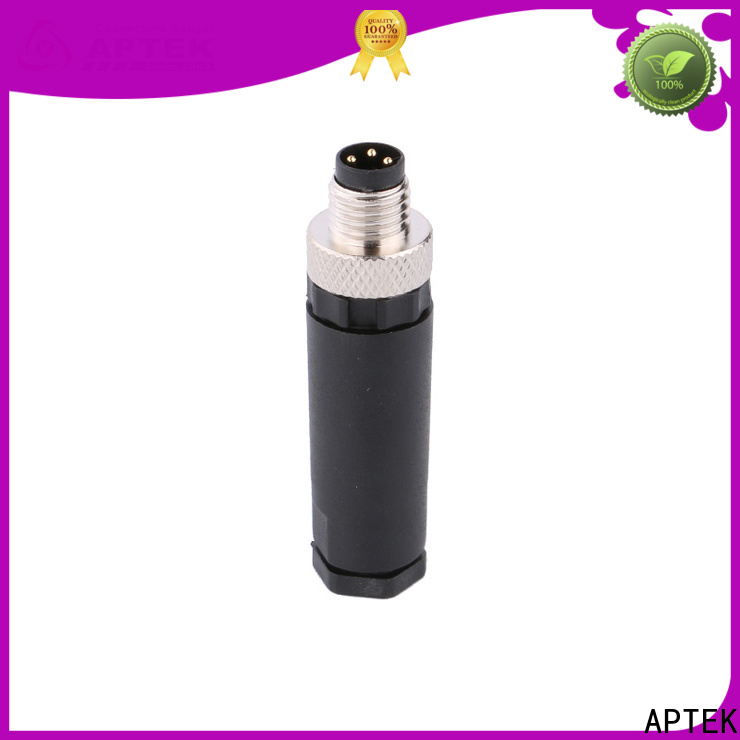

APTEK High-quality m8 cable connector suppliers for packaging machine-1

APTEK High-quality m8 cable connector suppliers for packaging machine-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector overmold	PA + GF
Connector insert	PA + GF
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
Suitable cable Dia:	3.5 ~ 5.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	3A	60V	60V	22~26AWG	0.34~0.14	PVC	Customized cable ending and length
04 pins	A-Coding	3A	60V	60V	22~26AWG	0.14~0.34	PVC	Customized cable ending and length
