M12 Circular Connector to USB2.0 Connector Molded with Cable

M8 Circular Connector to USB2.0 Connector Molded with Cable

Ethernet Patch Cables, double ended RJ45 8P8C male plug with locking screw on one end

Ethernet Patch Cables, double ended RJ45 8P8C male plug

Product Information
Feedback

Company Advantages
1. APTEK m8 cable connector is manufactured with exquisite development and strict production workmanship. APTEK is located in Zhongshan City which is one of the Four Little Tigers in Guangdong Province
2. Zhongshan Aptek Electronics Technology Co.,Ltd has high-level business effectiveness. APTEK has been developing and manufacturing industrial cable connectors for 9 years
3. Rust resistance is one of its most important properties. It is not prone to rust or corrode in a humid environment. A total of 11 steps are built for custom service at APTEK such as technical feasibility analysis
4. The product runs stably and reliably. It is not prone to the effects of sudden surges, susceptibility driven, gaps, interruptions, and voltage variations. APTEK has guaranteed the applications of connectors in food & beverage, chemicals, wood, LED lighting, etc

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

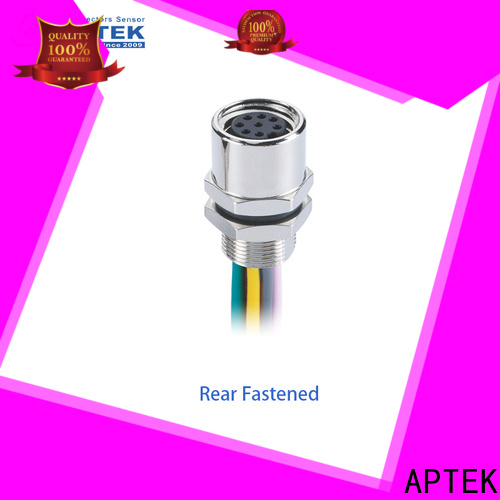

APTEK installable m8 cable connector manufacturers for industry-1

APTEK installable m8 cable connector manufacturers for industry-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	Solder Version	3A	60V	60V	24AWG	0.25	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.WH white 2.BN brown3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

Company Features
1. Zhongshan Aptek Electronics Technology Co.,Ltd successfully grasps the trends to use advanced technology to produce m8 cable connector .
2. Zhongshan Aptek Electronics Technology Co.,Ltd has independently researched and developed several new m8 connectors that take leading positions both at home and abroad
3. Zhongshan Aptek Electronics Technology Co.,Ltd strive to boost overseas sales by establishing a new export department. Get quote!

q******n

Strict quality control is conducted in the production of APTEK m8 connectors. The purity of the cells, the sawing, polishing, and coating of the body are all scrutinized before the product is shipped. It is designed and manufactured in accordance with China GB, GB/T, and GHZB standards

a******e

The POS interface of APTEK m8 connectors is designed by our professional experts who facilitate the overall aesthetic of the interface. It complies with European safety and environmental standards

m******v

Before the APTEK m8 cable connector is stored or shipped, the finishing operations and inspection remain to be performed following curing. The finishing operation trims flash or excess rubber. It provides protection against exterior elements from dirt and from the sun

f******k

APTEK m8 cable connector has to go through the deflashing process. The methods of deflashing include manual tear trimming, cryogenic processing, tumbling precision grinding. It will not cause itching with soft and smooth fabrics

k******r

APTEK m8 cable connector will go through a series of the quality control process. It will go through the inspection in terms of appearance after washing, fastness after washing, fastness to rubbing, the quality of dyestuff, etc. It can reduce the pain caused by continuous pressure on the knees while working or playing

r******n

Efficient heat transfer is one of its biggest selling points. The materials' thermal conductivity is high and has relations to their heat dissipation efficiency. The tight compression makes it help in improving blood circulation to some extent
