Product Information
Feedback

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

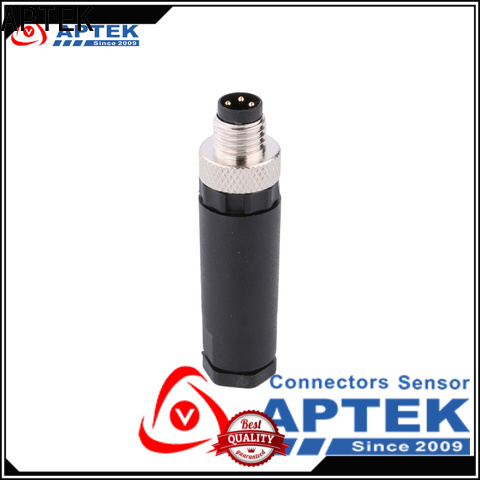

APTEK Latest m8 connectors company for packaging machine-1

APTEK Latest m8 connectors company for packaging machine-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector overmold	PA + GF
Connector insert	PA + GF
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
Suitable cable Dia:	3.5 ~ 5.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	3A	60V	60V	22~26AWG	0.34~0.14	PVC	Customized cable ending and length
04 pins	A-Coding	3A	60V	60V	22~26AWG	0.14~0.34	PVC	Customized cable ending and length

Level and performance

b******w

APTEK m8 female connector is often of customized design which links into the product’s or brand’s characteristics and will subsequently emphasize or even strengthen the ‘feeling’ of these features. Its lighting time is up to 16 hours after it's fully charged

t******b

APTEK m8 connectors is timeless, yet relevant and designed according to specific aesthetic, technical and environmental criteria, all while coordinating effortlessly with the hard surfaces offering. Owing to solar charging, users can save much cost without paying any electricity bills

c******k

APTEK m8 female connector is developed based on cutting edge energy-saving technologies. All its electric components, such as connector, conductor, and printed circuit board, are sophisticatedly manufactured. Its thickened heat sink helps to dissipate heat more quickly and effectively

a******v

APTEK m8 female connector is produced in line with environmental protection requirements. The electrolyte and metal ingredients in the battery cells have been tested to meet the national standards for the battery industry. Its thick aluminum frame protects it from the crack and damage

l******y

The design of APTEK m8 female connector takes into account the application of color. It is determined by fashion professionals who understand the psychology and chemistry of color. Its battery features fast charging and low discharge time

z******l

m8 connectors Durable and thickened materials are preferred, refined by advanced manufacturing technology, not only reasonable in design, excellent in workmanship, reliable in quality, but also have excellent properties such as wear resistance, corrosion resistance, and impact resistance, and are not easy to rust even after long-term use , deformation.
