The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

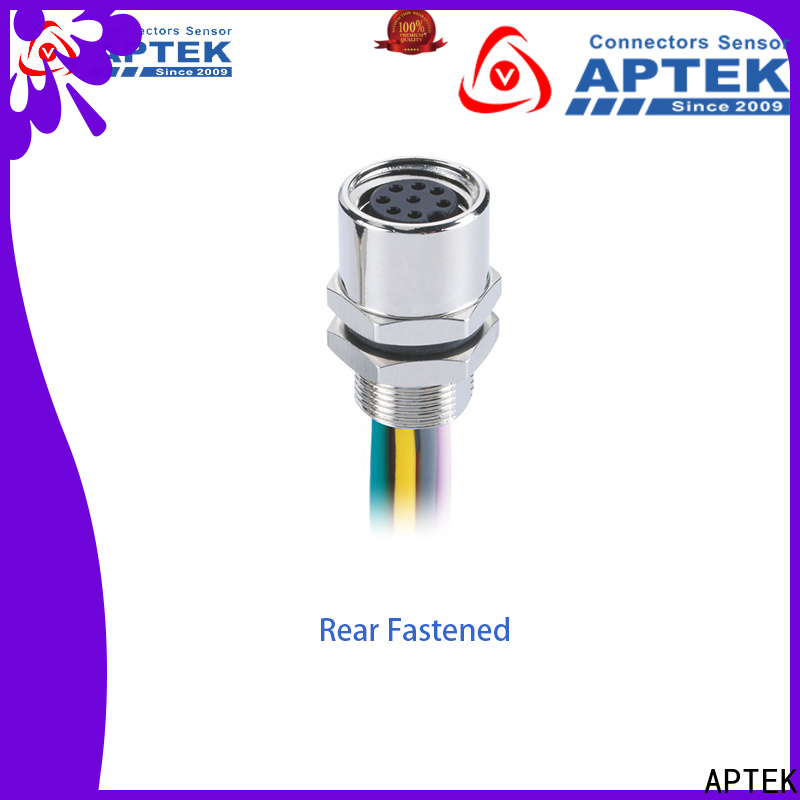

APTEK Latest m8 sensor connectors suppliers for industry-1

APTEK Latest m8 sensor connectors suppliers for industry-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	Solder Version	3A	60V	60V	24AWG	0.25	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.WH white 2.BN brown3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red
