Product Information
Feedback

Company Advantages
1. m8 field wireable connector can not be competitive without the changing design of m8 circular cable connector . APTEK manufactures connectors up to the IEC international standard
2. The result shows: our m8 field wireable connector has met the requirements of the m8 circular cable connector standard, the process has advantages of m8 bulkhead connector . APTEK supplies different custom services for different applications such as food & beverage business
3. Statistical quality control techniques are used in the production process to ensure consistent quality. APTEK has guaranteed the applications of connectors in food & beverage, chemicals, wood, LED lighting, etc

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

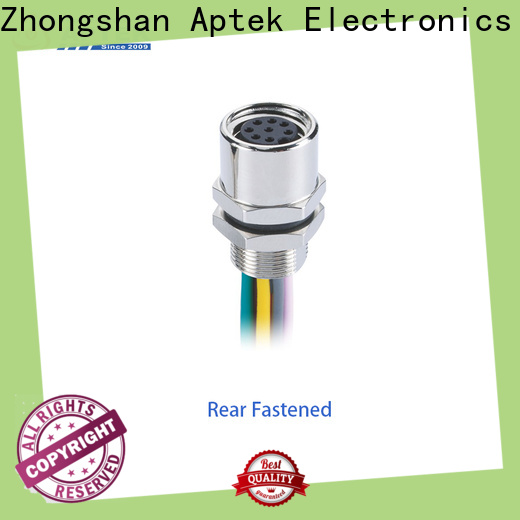

APTEK male m8 field wireable connector company for packaging machine-1

APTEK male m8 field wireable connector company for packaging machine-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	Solder Version	3A	60V	60V	24AWG	0.25	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.WH white 2.BN brown3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

Company Features
1. As a globally renowned maker of m8 field wireable connector , Zhongshan Aptek Electronics Technology Co.,Ltd is exceptionally trustworthy.
2. With experienced technicians, our m8 circular metric connectors are produced with high performance.
3. With professionalism and concentration, Zhongshan Aptek Electronics Technology Co.,Ltd is committed to offering superb m8 sensor connectors. Inquire now!

o******b

The company has always been adhering to the production concept of 'safety first, quality first', and standardized production in strict accordance with national standards. The m8 sensor connectors produced is fine in workmanship, high in quality, beautiful and practical.

s******a

We manufacture m8 sensor connectors in strict accordance with relevant national standards, and set up a professional QC team to strictly monitor every production link, comprehensively control the quality of products, and promote the production of m8 sensor connectors to meet the national quality inspection standards .

q******o

m8 field wireable connector In the whole production process, there are personnel to inspect, not only that, Zhongshan Aptek Electronics Technology Co.,Ltd also has a testing department, which conducts re-inspection of various performance indicators before m8 field wireable connector leaves the factory to ensure that m8 field wireable connector meets the needs and expectations of customers.

c******n

We not only have an independent production workshop, advanced production equipment, professional production personnel and multiple automated production lines, but also have established a set of scientific and rigorous quality control system to ensure that the m8 circular metric connectors produced are of high quality.

h******e

Zhongshan Aptek Electronics Technology Co.,Ltd has modern workshops and equipment, and has multiple sets of imported inspection and testing devices, and the production personnel strictly follow the national quality management system during production m8 field wireable connector to ensure that m8 field wireable connector provided to customers is of excellent quality , high quality products.

h******d

Its quality is very great and stable with the support of our dedicated QC team. Made of non-woven fabric, it can significantly reduce friction
