Company Advantages
1. APTEK m8 female connector , manufactured by a group of professional experts, is absolutely fine in workmanship. APTEK makes sure that each connector matches different environmental standards in all countries
2. Being trusted by long-term partners, APTEK is encouraged to produce higher-quality m8 circular metric connectors . Fast delivery is a promise of APTEK: only 2 weeks are needed
3. The product has reliable performance and long service life. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc
4. The product is not only powerful but also durable, and has a longer life than other competing products. APTEK, founded in 2009, focuses on developing connectors & sensors
5. Constant inspections: the product is manufactured under the constant inspections which are conducted by the QC team. They carry out an ongoing inspection method to ensure the quality of this product. A total of 11 steps are built for custom service at APTEK such as technical feasibility analysis

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

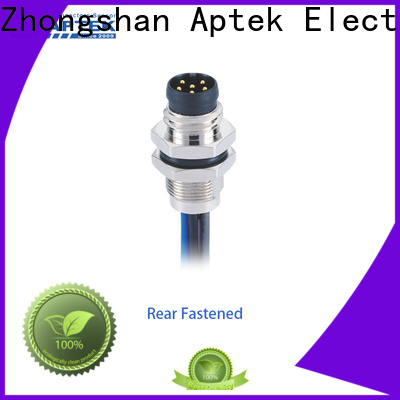

APTEK molded m8 circular metric connectors supply for packaging machine-1

APTEK molded m8 circular metric connectors supply for packaging machine-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	Solder Version	3A	60V	60V	24AWG	0.25	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC	1.WH white 2.BN brown3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance
