1. m8 panel mount connector Selected environmentally friendly raw materials, refined with exquisite processing technology, safe to use, high in quality, reliable and trustworthy.
2. One of the customers said that the product offers significant savings over its lifetime since it utilizes less energy and lasts longer. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc
3. By the integration of m8 bulkhead connector and panel mount circular connector , m8 panel mount connector is more popular among customers. APTEK could provide customers with safe, reliable, and easy-installed connectors
4. Some advantages of the m8 panel mount connector lie in m8 bulkhead connector . APTEK manufactures connectors up to the IEC international standard

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

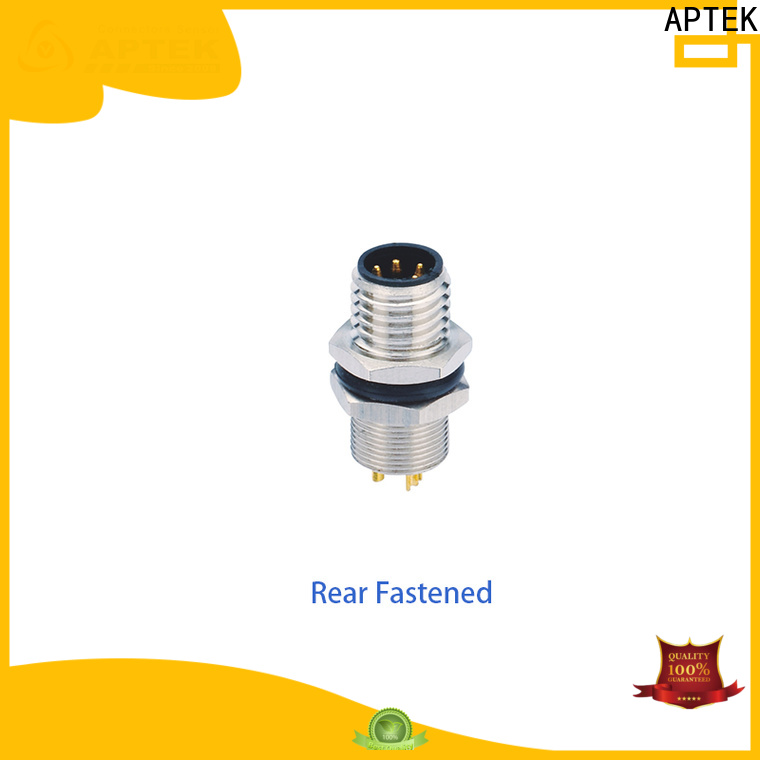

APTEK Top m8 panel mount connector factory for engineering-1

APTEK Top m8 panel mount connector factory for engineering-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	Solder Version	3A	60V	60V	24AWG	0.25	PVC	Customized cable ending and length
04 pins	A-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC
05 pins	B-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC
06 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC
08 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC

Level and performance

Company Features
1. Zhongshan Aptek Electronics Technology Co.,Ltd is a strong company that focuses on product research, state-of-the-art design, and professional manufacturing services. Our main product is m8 bulkhead connector . The scientific research and technical strength of Zhongshan Aptek Electronics Technology Co.,Ltd has reached the highest level of technology at home and abroad.
2. The factory is equipped with advanced production equipment and sophisticated quality testing devices. The equipment and devices are made precisely and run without less manual intervention. This means the monthly product output can be guaranteed.
3. Our production technology is internationally advanced. Zhongshan Aptek Electronics Technology Co.,Ltd will continue to provide superior m8 panel mount connector performance to customers for many years to come. Inquire online!

y******r

APTEK m8 panel mount connector is produced using optimum quality materials which we source from trusted vendors of the market. It has become an indispensable part to facilitate the construction process

a******k

The materials employed in the production of APTEK m8 bulkhead connector is up to the international standard. It has become an indispensable part to facilitate the construction process

i******a

panel mount circular connector is unusual in design and appropriate in size. It has an anti-abrasion spraying coat, which improves its long term abrasion performance

k******q

The raw materials of APTEK panel mount circular connector mainly comes from licensed suppliers. With a high degree of automation, it removes unnecessary operation procedures

v******c

APTEK panel mount circular connector is made with advanced production equipment and fine production technology. The product comes with a sufficient supply of spare parts for replacement in case

i******w

m8 panel mount connector Selected high-quality materials are manufactured using cutting-edge technologies and processes in the industry. They have good performances such as shock resistance, drop resistance, water and dust resistance, wear resistance and compression resistance. They are durable and have a long service life.
