1. APTEK m8 male connector is developed under the guidance of water treatment technicians and water management professionals who provides comprehensive advice on the pool cleaning solution. Fast delivery is a promise of APTEK: only 2 weeks are needed
2. Zhongshan Aptek Electronics Technology Co.,Ltd has such advantage of having international sales network. Even small customized lots could be accepted by APTEK
3. [企业简称] has always been adhering to the principle of 'genuine materials, fine workmanship', and the m8 waterproof connector produced is not only excellent in workmanship and high in quality, but also has good sealing and aging resistance, excellent performance and long service life.
4. m8 waterproof connector Excellent material selection, fine workmanship, comfortable touch, reliable quality, waterproof and dustproof, wear-resistant and drop-resistant, strong and durable, etc., can give you a different experience in use.

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

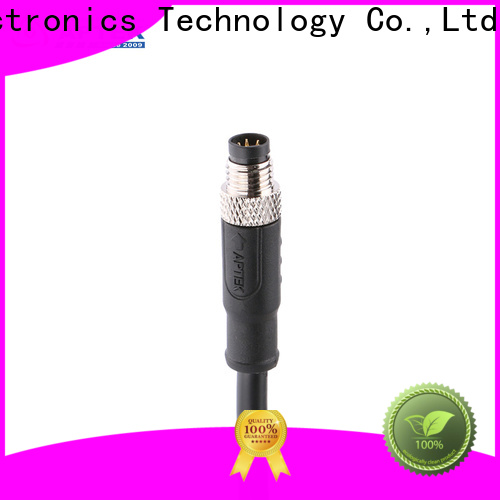

APTEK Top m8 waterproof connector company for industry-1

APTEK Top m8 waterproof connector company for industry-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	3A	60V	60V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.WH white 2.BN brown 3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance
