The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

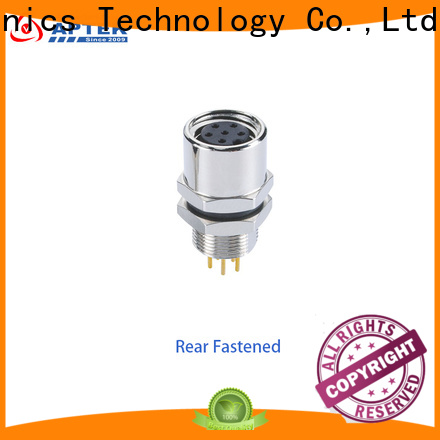

APTEK Wholesale m8 circular connector for business for packaging machine-1

APTEK Wholesale m8 circular connector for business for packaging machine-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	PCB Version	3A	60V	60V	24AWG	0.25	PVC	Customized cable ending and length
04 pins	A-Coding	PCB Version	3A	30V	30V	24AWG	0.25	PVC
05 pins	B-Coding	PCB Version	3A	30V	30V	24AWG	0.25	PVC
06 pins	A-Coding	PCB Version	1A	30V	30V	26AWG	0.14	PVC
08 pins	A-Coding	PCB Version	1A	30V	30V	26AWG	0.14	PVC

Level and performance

a******v

The design of APTEK m8 circular connector follow these basic steps: recognition of its need or purpose, selection of a possible mechanism, analysis of forces, material selection, design of elements (sizes and stresses), detailed drawing, etc. APTEK is located in Zhongshan City which is one of the Four Little Tigers in Guangdong Province

h******w

Advanced machining techniques have been adopted in APTEK m8 pcb connector production. It is fabricated under CNC machining, electrical discharge machining (EDM), laser cutting, and other treatments. APTEK is located in Zhongshan City which is one of the Four Little Tigers in Guangdong Province

d******i

Materials used for APTEK m8 circular connector has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. Easy Connection at Industrial Sites is the pursuit of APTEK

j******d

APTEK m8 circular connector must be inspected in many aspects. They are harmful substances content, lead content, dimensional stability, static loading, colors, and texture. APTEK has been developing and manufacturing industrial cable connectors for 9 years

s******n

APTEK m8 circular connector has a very scientific design. Humidity, temperature, carbon dioxide and light, as well as other factors such as rain, airflow or noise, are environmental concerns in design. Even small customized lots could be accepted by APTEK

e******i

The product is highly resistant to pressure. It is made of composite metal materials such as copper or aluminum alloy which feature excellent hardness and anti-impact resistance. Fast delivery is a promise of APTEK: only 2 weeks are needed
