The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

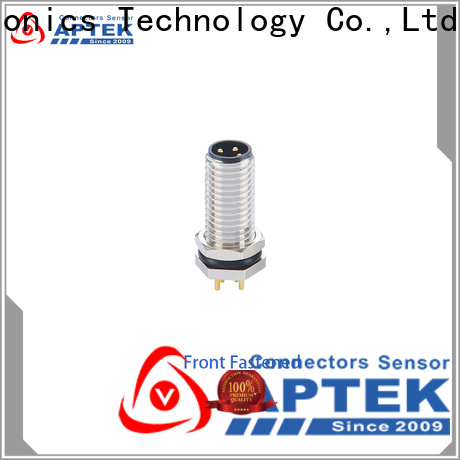

APTEK wires m8 sensor connectors factory for engineering-1

APTEK wires m8 sensor connectors factory for engineering-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	PCB Version	3A	60V	60V	24AWG	0.25	PVC	Customized cable ending and length
04 pins	A-Coding	PCB Version	3A	30V	30V	24AWG	0.25	PVC
05 pins	B-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC
06 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC
08 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC

Level and performance

v******o

APTEK m8 pcb connector will be check to guarantee no electrical failure. It has passed the power-on test, energy-efficient test, and anti-aging test. The sound and error alarm can minimize work errors

x******f

APTEK m8 sensor connectors is developed with complicated electrical or electronic technologies. CNC technology, the microelectronic technique, and sensor technology have been adopted into its development by mechanical engineers. The drop-in paper loading is easy to handle

o******x

APTEK m8 pcb connector is manufactured by complying with a variety of electrical standards, including electrical safety, electromagnetic compatibility (EMC) and the chemical composition of materials. Containing few detachable parts, this product saves much maintenance cost

i******x

The development of APTEK m8 pcb connector is the soul of wit of our R&D team. It is developed with great performance and functionality by the R&D staff who have experience in energy conservation and consumption reduction, the knowledge of transformer and motor, and the wiring installation. The front-facing control provides total convenience

x******f

APTEK m8 sensor connectors is a luxury to enjoy every day and night. Using time-honored techniques and crafted of the finest materials, it is manufactured in our own factory in China. Printing error is less likely to happen, leading to less downtime for this product

n******q

This product can last for a long time. It has a sturdy frame that can maintain its shape for years without any variation in warping or twisting. Print width and line spacing can be customized based on needs
