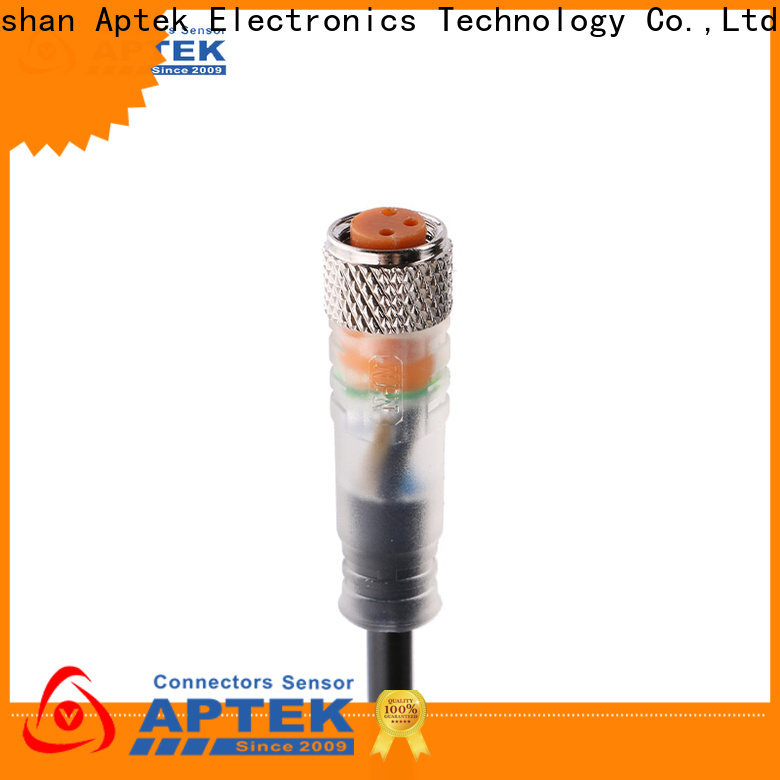

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

Best m8 connectors m8 manufacturers for packaging machine-1

Best m8 connectors m8 manufacturers for packaging machine-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	Transparent PVC / TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Cable ending & length
03 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	Customized cable ending and length
