High-quality m8 cable connector solder for business for industry

Latest products

M12 Circular Connector to USB2.0 Connector Molded with Cable

M8 Circular Connector to USB2.0 Connector Molded with Cable

Ethernet Patch Cables, double ended RJ45 8P8C male plug with locking screw on one end

Ethernet Patch Cables, double ended RJ45 8P8C male plug

Product Information
Feedback

Company Advantages
1. APTEK panel mount circular connector is especially designed by our experienced technical team. Efficient response to all instructions from customers is a mission of APTEK
2. Healthcare practitioners and patients can be set assured that this product would not cause an infection as it is highly sterile. APTEK is located in Zhongshan City which is one of the Four Little Tigers in Guangdong Province
3. The product has been improved with additional functionality to enable more function-rich clients. APTEK has guaranteed the applications of connectors in food & beverage, chemicals, wood, LED lighting, etc
4. To ensure the optimum quality and durability, the product is examined on various parameters at every level of production. APTEK is a focus on industrial connectors for nearly 10 years
5. The product is in complete compliance with set industry standards. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

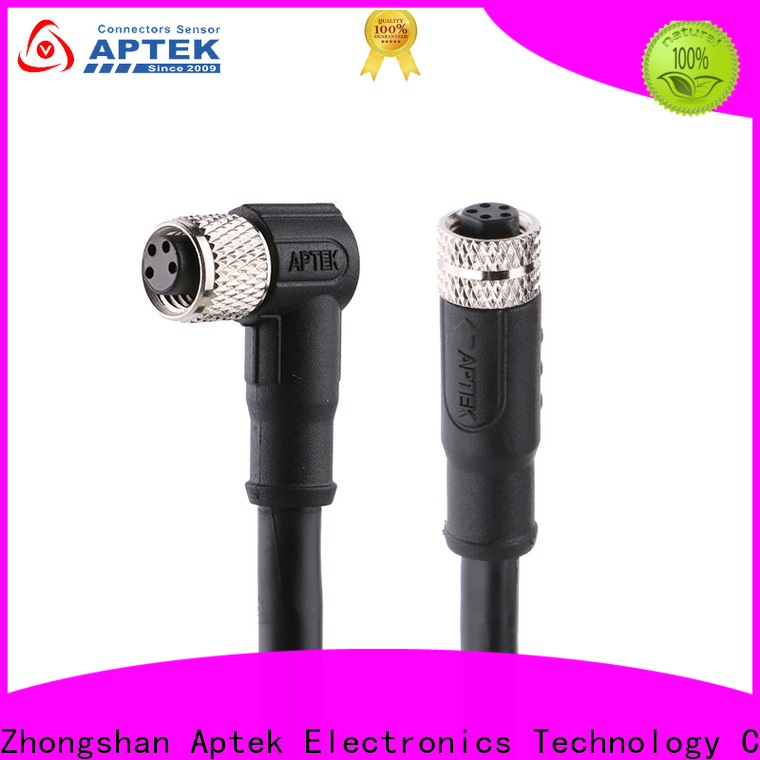

High-quality m8 cable connector solder for business for industry-1

High-quality m8 cable connector solder for business for industry-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	3A	60V	60V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.WH white 2.BN brown 3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

Company Features
1. Zhongshan Aptek Electronics Technology Co.,Ltd plays a leading part in the global industry of m8 cable connector .
2. We have set up a manufacturing team. They are familiar with complex and sophisticated new machine tools and enable us to meet the complicated needs of our customers.
3. We are committed to making all of our business and production activities comply with relevant legislative and regulatory environmental requirements. We make our wasted be discharged more legitimate and eco-friendly, and cut down resources wastes and consumptions.

l******p

With the efforts of our fine workmanship, APTEK has gained much popularity since founded. Hanway follows the principle of customer first

u******q

The most attractive features of panel mount circular connector is m8 cable connector. We are committed to improving our core value to be more competitive in the market

m******q

m8 cable connector uses m8 cable connector materials to the guarantee of a 100% natural product. All our products have passed the certificated qualification of ISO9001 and IATF16949

i******s

Appreciated by most customers, APTEK have been deeply realized the importance of panel mount circular connector to users.

p******h

Materials used for panel mount circular connector is periodically renovate to make it own best properties. Hanway will as always, pursue excellence with its own ability to win the recognition of clients in the world

w******k

This product is hard yet it is typically smooth and pleasantly cool to touch. Its finish is made of high-quality ceramic glaze which is finely fired. Maintaining a mutually beneficial relationship with customers is a part of our core values
