Product Information
Feedback

Company Advantages
1. No other similar m8 connectors has been able to equal its m8 male connector . APTEK has been developing and manufacturing industrial cable connectors for 9 years
2. Zhongshan Aptek Electronics Technology Co.,Ltd has set up the top platform of commercial resource in the world. Fast delivery is a promise of APTEK: only 2 weeks are needed
3. This product has sturdy construction and durability and can be used for a long time. APTEK could provide customers with safe, reliable, and easy-installed connectors

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

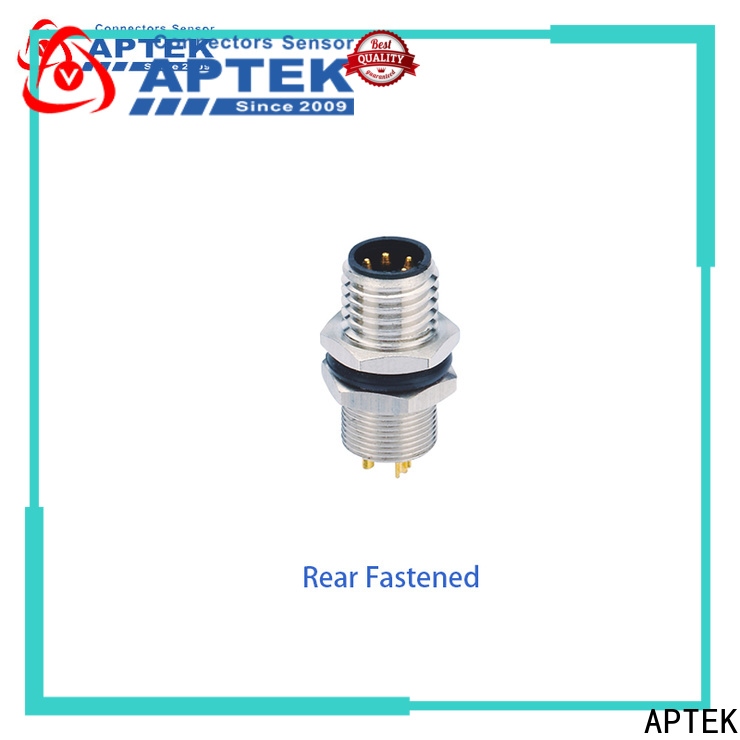

New m8 connectors installable company for industry-1

New m8 connectors installable company for industry-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Standard	IEC 61076-2-104
Ambient temperature	-25℃ ~ +80℃
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Wire termination	Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	Coding	Wire termination	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins	A-Coding	Solder Version	3A	60V	60V	24AWG	0.25	PVC	Customized cable ending and length
04 pins	A-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC
05 pins	B-Coding	Solder Version	3A	30V	30V	24AWG	0.25	PVC
06 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC
08 pins	A-Coding	Solder Version	1A	30V	30V	26AWG	0.14	PVC

Level and performance

Company Features
1. We have the capability of researching and developing state-of-the-art technologies of m8 connectors .
2. Since its inception, APTEK has focused on market demand and continuously upgraded and improved its products. Call now!

d******o

APTEK m8 connectors goes through comprehensive testing to ensure quality. These tests cover workmanship, safety, stability, strength, impacts, drops, and so forth. Thanks to its premium aluminum housing, it features efficient heat dissipation

j******j

APTEK m8 connectors is manufactured according to A-class standards stipulated by the state. It has passed quality tests including GB50222-95, GB18584-2001, and GB18580-2001. Its integrated body offers easy installation, thus, it helps to save much time

g******o

APTEK m8 male connector is professionally manufactured. It is carried out by expert developers with mechanical design automation and the ability to solve practical engineering problems. Its integrated body offers easy installation, thus, it helps to save much time

x******b

APTEK m8 male connector is of innovative design. Its creation uses the latest design concepts and adopting advanced computer-assisted methods. Its polycrystalline silicon solar panel features high conversion

t******s

The design of APTEK m8 connectors is finished with high quality. It gives consideration to the contrast and consistency of dimension and the contrast and consistency of direction that aims to achieve rich change in spatial organization. Its thick aluminum frame protects it from the crack and damage

t******d

The industrial application result shows that m8 connectors can realize the characteristics of m8 male connector. Adopting a recyclable Li-ion battery, it causes no pollution to the environment
