The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

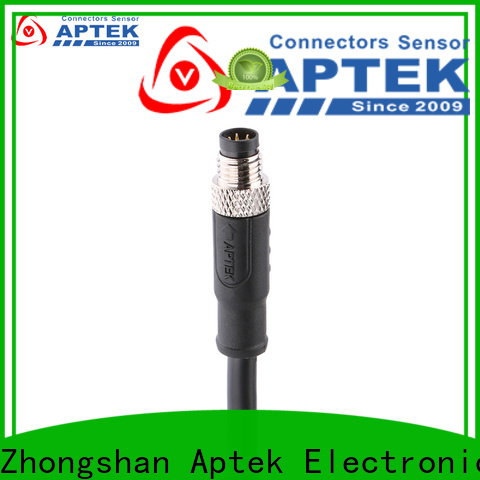

New m8 waterproof connector pcb suppliers for packaging machine-1

New m8 waterproof connector pcb suppliers for packaging machine-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	3A	60V	60V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.WH white 2.BN brown 3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

c******m

APTEK m8 waterproof connector is produced strictly according to requirements stipulated in the electric appliance industry. It has passed the circuit test, EMI test, insulation test, and overload test. This product allows for the perfect customized fit

r******r

APTEK m8 cable connector manufacturer has gone through the assessment. It has been checked in terms of magnetic and electromagnetic fields, harmful radiation, noises, temperatures, biological and chemical effects, electrical shock, etc. Its stretchable materials help to improve dexterity and comfort during a wide range of activities

s******b

APTEK m8 cable connector manufacturer is of rational design. Its idea is from a design team composed of Industrial designers and architects who understand the fundamentals of shape, form, and function. This product stands out for its tremendous tear- and abrasion resistance

b******i

APTEK m8 waterproof connector is formulated using two distinct strategies, namely technology and market (or customer-driven). Its design is based on the architect’s aesthetic vision as well as the everchanging customer requirement. This product is lightweight and achieves the maximum portability

d******m

APTEK m8 waterproof connector has been certified under some certificates in domestic and overseas. These certificates are mainly National Compulsory Product Certification (CCC), IEC Safety Standards for Electric Appliances, and RoHS. This product has the advantage of excellent breathability

b******f

This product has been reviewed and certified to meet the most stringent quality requirements. Its digital controls are completely waterproofed to be washer machine and dryer safe
