APTEK High-quality m8 circular connector suppliers for packaging machine

APTEK High-quality m8 circular connector suppliers for packaging machine

Brand
APTEK
Connector Series
M8
Locking type
Fix Screw
Mounting type
Front & Rear Mount
Standard
IEC 61076-2-104
Coupling nut/screw
Brass with nickel plated
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:
Company Advantages
1. APTEK m8 circular connector has to go through electrical safety testing. It has passed safety tests such as the high voltage test, insulation resistance test, ground continuity test, and leakage current test. Even small customized lots could be accepted by APTEK
2. As a professional m8 circular connector manufacturer, APTEK will be confident enough to provide m8 cable connector and panel mount circular connector . At APTEK, certificates such as ROHS and UL are strong evidence of our capabilities
3. Advanced facility, top-ranking testing means and stringent control procedures give the product high quality guarantee. APTEK, founded in 2009, focuses on developing connectors & sensors
4. The product has obtained international quality certificates and meets the quality standard of many countries and regions. Founded in 2009, APTEK is a professional manufacturer of industrial waterproof connectors

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

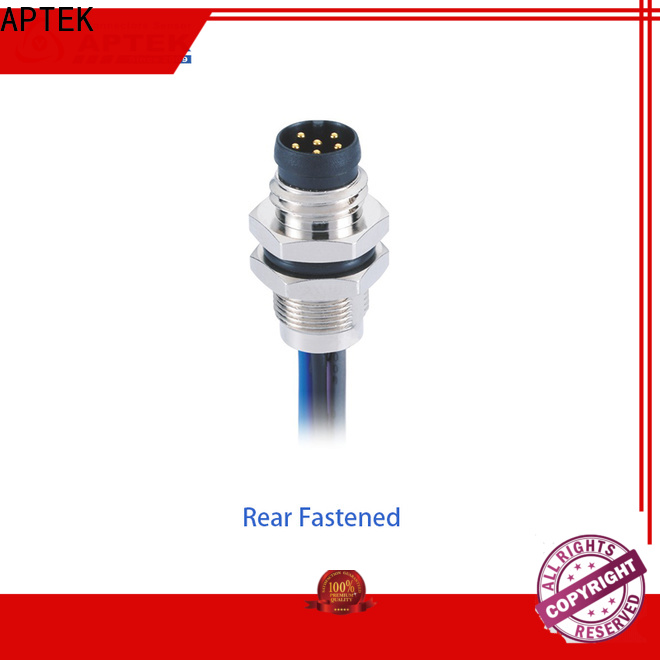

APTEK High-quality m8 circular connector suppliers for packaging machine-1
APTEK High-quality m8 circular connector suppliers for packaging machine-2



General Information


Connector SerriesM8
GenderMale
Locking typeFix screw
Mounting typeStraight
StandardIEC 61076-2-104
Ambient temperature-25℃ ~ +80℃
Connector insertPA
Connector contactsBrass with gold plated
Coupling nut/screwBrass with nickel plated
Insulation resistance≥100 MΩ
Contact resistance≤ 5 mΩ
EMI ShieldingNon-Shielded
IP ratingIP 67 in locked condition
Locking DesignAnti-Vibration


Electrical data & Mechanical data


ContactsCoding

Wire

termination

Rated currentVoltageWire gauge/sizeWire insulationWiring listCable ending & length
A/CD/CAWGmm²
03 pins

APTEK High-quality m8 circular connector suppliers for packaging machine-3

A-Coding

Solder

Version

3A60V

60V

24AWG0.25PVC1.BN brown
3.BU blue
4.BK black

Customized

cable ending and length

04 pins

APTEK High-quality m8 circular connector suppliers for packaging machine-4

A-Coding

Solder

Version

3A30V30V24AWG0.25PVC1.BN brown
2.WH white
3.BU blue
4.BK black
05 pins

APTEK High-quality m8 circular connector suppliers for packaging machine-5

B-Coding

Solder

Version

3A30V30V24AWG0.25PVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
06 pins

APTEK High-quality m8 circular connector suppliers for packaging machine-6

A-Coding

Solder

Version

1A30V30V26AWG0.14PVC1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink

08

pins

APTEK High-quality m8 circular connector suppliers for packaging machine-7

A-Coding

Solder

Version

1A30V30V26AWG0.14PVC1.WH white
2.BN brown3.GN green
4.YL yellow
5.GY grey

6.PK pink

7.BU blue

8.RD red


Level and performance



Company Features
1. Zhongshan Aptek Electronics Technology Co.,Ltd has been known for the professional production and customized service on panel mount circular connector . We are strong and experienced in this industry.
2. Our factory sticks to the ISO 9001 international quality management system from the very beginning. Under this system, we set standards for all production stages to help ensure customers get consistent, good quality products.
3. We will shift to a more environmentally friendly production approach. We handle all the scrap, waste gases, and wastewater strictly in line with relevant regulations.
APTEK m8 circular connector is manufactured with high quality. Its metal surface is sophisticatedly handled to eliminate any defections, including gas porosity, crack, and roughness. APTEK is a focus on industrial connectors for nearly 10 years
Quality inspection of APTEK m8 circular connector will be conducted strictly. Its dimensional tolerance, form and location tolerance, surface roughness, and thermal treatment quality will be checked using high-tech testing machines. APTEK, founded in 2009, focuses on developing connectors & sensors
APTEK m8 circular connector has passed various safety tests required in electric appliances industry. It is tested in terms of the surge, electrostatic discharge, EMC, and susceptibility. Even small customized lots could be accepted by APTEK
Precision and quality are among the core competencies of APTEK panel mount circular connector. It is manufactured using cutting-edge technologies such as sensing, computer science, intelligence, and PLC technologies. APTEK is located in Zhongshan City which is one of the Four Little Tigers in Guangdong Province
APTEK panel mount circular connector has gone through the following four kinds of tests: dielectric withstand/hipot test, isolation resistance test, leakage current test, etc. APTEK has a wide range of metric circular connectors and cable assembly that fit almost all standards
External 3rd party auditors praised this product for its high performance. APTEK, founded in 2009, focuses on developing connectors & sensors
