Wholesale m8 panel mount connector contacts suppliers for packaging machine

Latest products

M12 Circular Connector to USB2.0 Connector Molded with Cable

M8 Circular Connector to USB2.0 Connector Molded with Cable

Ethernet Patch Cables, double ended RJ45 8P8C male plug with locking screw on one end

Ethernet Patch Cables, double ended RJ45 8P8C male plug

Product Information
Feedback

Company Advantages
1. Zhongshan Aptek Electronics Technology Co.,Ltd has many years of production experience, exquisite production technology, strong production strength, and can produce high-quality m8 panel mount connector .
2. [企业简称] has established a scientific and complete quality management system, and conducts all-round quality monitoring of products from raw material selection to finished product delivery, to ensure that m8 panel mount connector produced are all qualified products with excellent performance and reliable quality.
3. Its quality is strictly controlled by our professional QC team. Efficient response to all instructions from customers is a mission of APTEK
4. Its quality is qualified to meet the requirements of certifications. A total of 11 steps are built for custom service at APTEK such as technical feasibility analysis

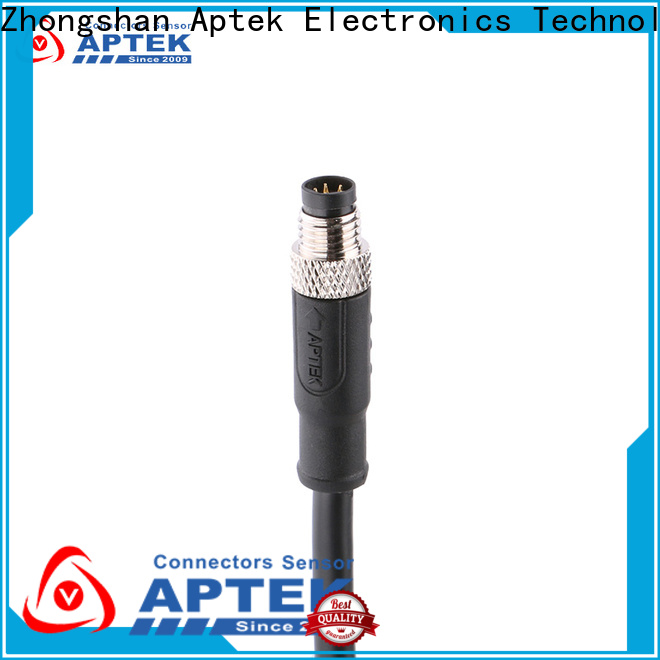

The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

APTEK contacts m8 panel mount connector suppliers for packaging machine-1

APTEK contacts m8 panel mount connector suppliers for packaging machine-2

General Information

Connector Serries	M8
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	3A	60V	60V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.WH white 2.BN brown 3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

Company Features
1. Zhongshan Aptek Electronics Technology Co.,Ltd is a modernized globally leading integrated m8 panel mount connector company.
2. Thanks to the technicians, APTEK can produce technically great m8 circular connector .
3. Zhongshan Aptek Electronics Technology Co.,Ltd upholds the impression that ability cultivation has consistently played a significant role in the evolution. Inquire online!

u******j

The design of APTEK m8 bulkhead connector follow these basic steps: recognition of its need or purpose, selection of a possible mechanism, analysis of forces, material selection, design of elements (sizes and stresses), detailed drawing, etc. Our main products are rubber bushing, suspension bushings, engine mounting, strut mounting, etc

c******w

Advanced machining techniques have been adopted in APTEK m8 circular connector production. It is fabricated under CNC machining, electrical discharge machining (EDM), laser cutting, and other treatments. Our main products are rubber bushing, suspension bushings, engine mounting, strut mounting, etc

a******j

Materials used for APTEK m8 circular connector has been tested. The tests include toughness or brittleness testing, hardness testing, tensile testing, etc. GJ Bush is top rubber bushing manufacturer since 1998, focusing on auto parts engine mounting and suspension bushings for more than 22 years

y******w

APTEK m8 panel mount connector must be inspected in many aspects. They are harmful substances content, lead content, dimensional stability, static loading, colors, and texture.

s******o

APTEK m8 bulkhead connector has a very scientific design. Humidity, temperature, carbon dioxide and light, as well as other factors such as rain, airflow or noise, are environmental concerns in design. Our main products are rubber bushing, suspension bushings, engine mounting, strut mounting, etc

i******p

The product is highly resistant to pressure. It is made of composite metal materials such as copper or aluminum alloy which feature excellent hardness and anti-impact resistance. GJ Bush is top rubber bushing manufacturer since 1998, focusing on auto parts engine mounting and suspension bushings for more than 22 years
