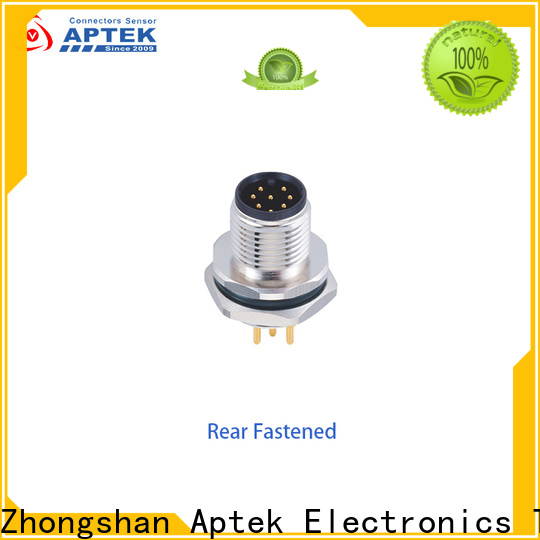

    APTEK Custom m12 male connector supply for packaging machine
    APTEK Custom m12 male connector supply for packaging machine

    APTEK Custom m12 male connector supply for packaging machine

    APTEK Custom m12 male connector supply for packaging machine

    Brand
    APTEK
    Connector Series
    M12
    Locking type
    Fix Screw
    Mounting type
    Straight
    Standard
    IEC 61076-2-101
    Coupling nut/screw
    Brass with nickel plated
    Locking Design
    Anti-Vibration
    Price
    Get Latest Price
    Inquire Online
    Get the latest price
    Quantity Needed：
    Pieces
    E-mail：

    M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.


    APTEK Custom m12 male connector supply for packaging machine-1
    APTEK Custom m12 male connector supply for packaging machine-2



    General Information


    Connector SerriesM12
    GenderMale
    Locking typeFix screw
    Mounting typeStraight angled
    StandardIEC 61076-2-101
    Ambient temperature-20℃ ~ +80℃
    Connector overmoldTPE/ TPU
    Connector insertPA
    Connector contactsBrass with gold plated
    Coupling nut/screwBrass with nickel plated
    Insulation resistance≥100 MΩ
    Contact resistance≤ 5 mΩ
    EMI Shielding Non-Shielded
    IP ratingIP 67 in locked condition
    Locking DesignAnti-Vibration
    Mounting ThreadM12, PG9 or M16


    Electrical data & Mechanical data


    ContactsAvailable Coding

    Wire

    Termination

    		Rated currentVoltageWire gauge/size

    Cable

     jacket

    		Wire insulationWiring listCable ending & length
    AB DA/CD/CAWGmm²
    03 pins

    APTEK Custom m12 male connector supply for packaging machine-3

    APTEK Custom m12 male connector supply for packaging machine-4



    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    3.BU blue
    4.BK black    		Customized cable ending and length
    04 pins

    APTEK Custom m12 male connector supply for packaging machine-5

    APTEK Custom m12 male connector supply for packaging machine-6

    APTEK Custom m12 male connector supply for packaging machine-7

    PCB

    Version

    		4A250V250V24AWG0.34PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    05 pins

    APTEK Custom m12 male connector supply for packaging machine-8

    APTEK Custom m12 male connector supply for packaging machine-9



    PCB

    Version

    		4A60V60V24AWG0.35PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    08 pins

    APTEK Custom m12 male connector supply for packaging machine-10





    PCB

    Version

    		2A30V30V26AWG0.25PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    12 pins

    APTEK Custom m12 male connector supply for packaging machine-11





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    17 pins

    APTEK Custom m12 male connector supply for packaging machine-12





    PCB

    Version

    		1.5A30V30V26AWG0.14PUR / PVCPVC1.BN brown
    2.WH white
    3.BU blue
    4.BK black
    5.GY grey
    6.PK pink
    7.BU blue
    8.RD red
    9.VT violet
    10.NV navy
    11.OR orange
    12.BK black
    13.WH/GN white/green
    14.WH/YE white/yellow
    15.WH/GY white/grey
    16.WH/RD white/red
    17.OR orange


    Level and performance



    APTEK m12 male connector is designed using sophisticated tools & equipment with the help of our team of talented craftsmen. Tigerwings offers rubber pads featuring good durability, anti-deformation, and slip resistance
    m12 non-shielded connectors manufacture adheres to the standard process operation. Tigerwings is the exclusive supplier to Vistaprint
    While manufacturing APTEK m12 non-shielded connectors, our adept professionals only make use of premium raw materials. Tigerwings offers rubber pads featuring good durability, anti-deformation, and slip resistance
    APTEK m12 male connector is manufactured using the best quality raw material and cutting edge technology under the guidance of skilled professionals. Tigerwings offers rubber pads with top quality and long-time use without deformation
    Zhongshan Aptek Electronics Technology Co.,Ltd has been dedicated to the research and development of special m12 non-shielded connectors materials to meet the needs of global customers. Tigerwings has 16 years of experience in manufacturing foam rubber pad
    m12 non-shielded connectors has intelligence functions of m12 non-shielded connectors, with characteristics of m12 non-shielded connectors. Tigerwings can do thermal transfer printing, full-color printing and CMYK
    Product Message

    APTEK is focus on development and manufacturing in industrial cable connectors for more than 9 years.
