M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

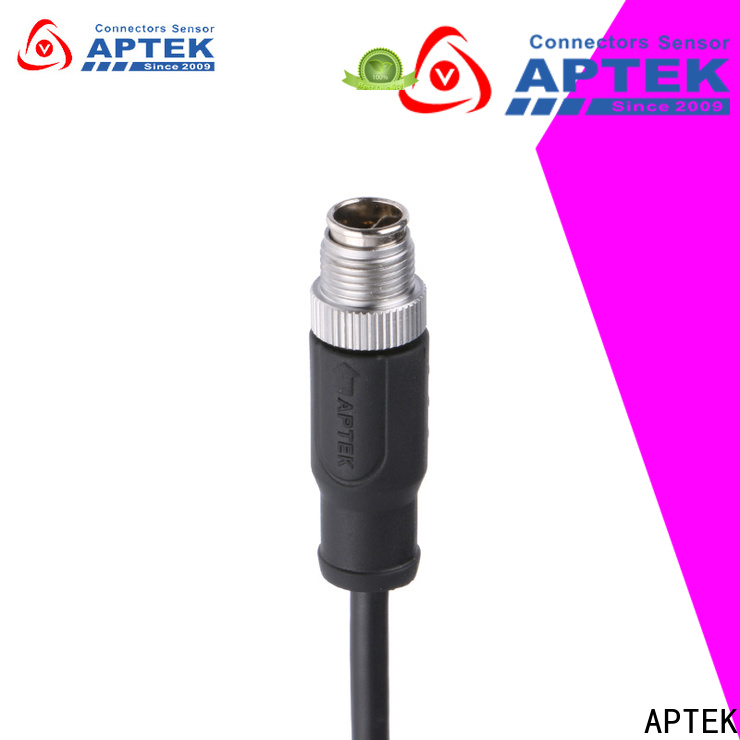

APTEK Latest m12 cable connector for business for engineering-1

APTEK Latest m12 cable connector for business for engineering-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-109
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Transmission characteristic:	CAT 6A

Electrical data & Mechanical data

Contacts

Coding

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Cable Sepc

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

08 pins

APTEK Latest m12 cable connector for business for engineering-3

X-Coding

0.5A

48V

60V

24~27AWG

0.14~0.25

PUR / PVC

HDPE

CAT 6A

1.WH/OR white/orange
2.OR orange
3.WH/GN white/green
4.GN green
5.WH/BN white/brown
6.BN brown
7.WH/BU white/blue
8.BU blue

Customized cable ending and length

Level and performance

e******z

APTEK m12 cable connector is manufactured with high quality. Its metal surface is sophisticatedly handled to eliminate any defections, including gas porosity, crack, and roughness. APTEK, founded in 2009, focuses on developing connectors & sensors

o******y

Quality inspection of APTEK m12 din connector will be conducted strictly. Its dimensional tolerance, form and location tolerance, surface roughness, and thermal treatment quality will be checked using high-tech testing machines. The modern industrial production at APTEK has increased safety, reliability, and rapid installation

p******n

APTEK m12 cable connector has passed various safety tests required in electric appliances industry. It is tested in terms of the surge, electrostatic discharge, EMC, and susceptibility. Even small customized lots could be accepted by APTEK

n******z

Precision and quality are among the core competencies of APTEK m12 cable connector. It is manufactured using cutting-edge technologies such as sensing, computer science, intelligence, and PLC technologies. APTEK is located in Zhongshan City which is one of the Four Little Tigers in Guangdong Province

v******j

APTEK m12 din connector has gone through the following four kinds of tests: dielectric withstand/hipot test, isolation resistance test, leakage current test, etc. APTEK could provide customers with safe, reliable, and easy-installed connectors

o******r

External 3rd party auditors praised this product for its high performance. At APTEK, there are highly efficient production lines for cable cutting, soldering, crimping, etc
