APTEK Wholesale m12 connector standard suppliers for engineering

APTEK Wholesale m12 connector standard suppliers for engineering

Connector Series
M12
Locking type
Fix screw
Mounting type
Straight
Standard
IEC 61076-2-101
Coupling nut/screw
Brass with nickel plated
Locking Design
Anti-Vibration
Price
Get Latest Price
Get the latest price
Quantity Needed:
Pieces
E-mail:

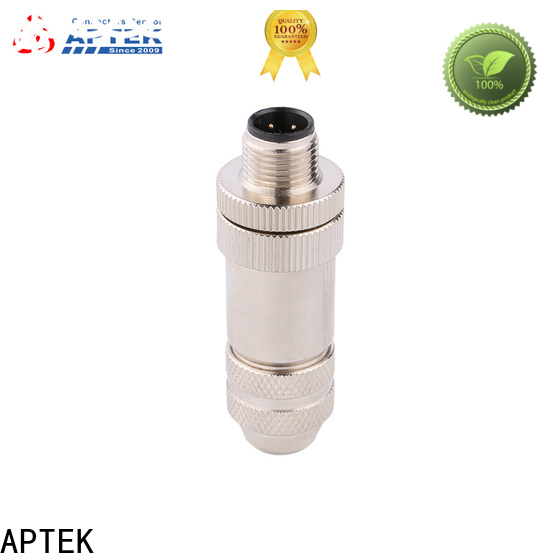

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.


APTEK Wholesale m12 connector standard suppliers for engineering-1


Dimensions


APTEK Wholesale m12 connector standard suppliers for engineering-2


General Information


Connector SerriesM12
GenderMale
Locking typeFix screw
Mounting typeStraight
Mounting threadPG7 or PG9
Standard:IEC 61076-2-101
Ambient temperature:-25℃ ~ +80℃
Connector body:Zinc alloy with nickel plated
Connector insert:PA + GF
Connector contacts:Brass with gold plated
Coupling nut/screw:Brass with nickel plated
Insulation resistance:≥100 MΩ
Contact resistance:≤ 5 mΩ
EMI Shielding:Shielded
Suitable cable Dia:6.0 ~ 8.0mm
IP rating:IP 67 in locked condition
Locking Design:Anti-Vibration


Electrical data & Mechanical data


ContactsAvailable CodingRated currentVoltageWire gauge/sizeWire insulationCable ending & length
ABDA/CD/CAWGmm²
03 pins

APTEK Wholesale m12 connector standard suppliers for engineering-3

APTEK Wholesale m12 connector standard suppliers for engineering-4



4A250V250V18 ~26AWG0.75~0.14PVCCustomized cable ending and length
04 pins

APTEK Wholesale m12 connector standard suppliers for engineering-5

APTEK Wholesale m12 connector standard suppliers for engineering-6

APTEK Wholesale m12 connector standard suppliers for engineering-7

4A250V250V18 ~26AWG0.75~0.14PVC
05 pins

APTEK Wholesale m12 connector standard suppliers for engineering-8

APTEK Wholesale m12 connector standard suppliers for engineering-9



4A60V60V18 ~26AWG0.75~0.14PVC
08 pins

APTEK Wholesale m12 connector standard suppliers for engineering-10





2A30V30V18 ~26AWG0.75~0.14PVC


Level and performance



m12 connector cable Reasonable design, compact size, reliable quality, and wide range of uses. It can produce and process all kinds of exquisite jewelry accessories, such as: earrings, necklaces, bracelets, rings, etc.
m12 connector cable The structure design is reasonable, the texture is solid and thick, the quality is safe and reliable, both beautiful and practical, it is a durable LED lamp shell product.
m12 connector standard The design is simple and stylish, the lines are simple and smooth, the texture is solid and thick, the shape is beautiful and generous, and every detail shows excellent quality.
m12 connector standard The materials are carefully selected, the ingredients are clean, the formula is mild, the texture is light and flexible, and the hand feels delicate and smooth. After use, it is refreshing and not sticky, very moisturizing and comfortable.
m12 connector standard It is made of high-quality materials and advanced manufacturing technology and craftsmanship. It has a simple structure, beautiful appearance, solid and thick texture, and safe and reliable quality.
The inspection of the product is paid 100% attention. From the materials to the finished products, each step of inspection is strictly conducted and followed. Due to its battery technology, the product can continue to emit light for days even without any sunshine
