1. APTEK m5 emi shield cable connector has been strictly checked before delivery. It will be tested in terms of its insulation performance, short circuit protection capacity, electric leakage, etc. APTEK, founded in 2009, focuses on developing connectors & sensors
2. The product is economical and has been widely used in all walks of life. APTEK produces connectors with precision, quality, and competitiveness
3. Zhongshan Aptek Electronics Technology Co.,Ltd Actively introduce domestic and foreign advanced machinery production equipment to manufacture circular cable connectors , and establish a strict cost control system to strictly control the production cost of each link to ensure that circular connectors has a low price, and customers choose our products m5 circular cable mount connectors, can save a lot of cost for the enterprise.

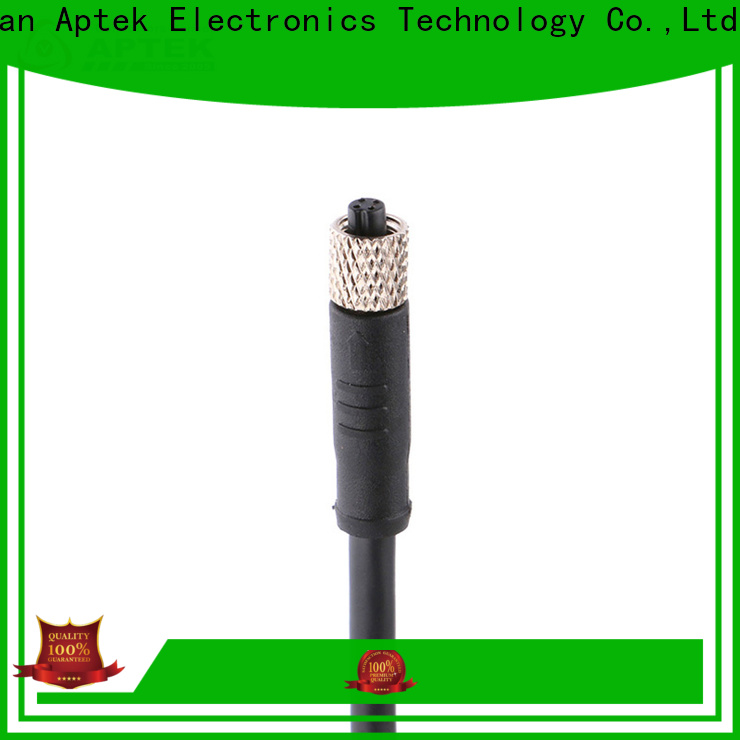

The series of M5 circle connector is specially developed for the minuature sendsor market. The connector of 5mm metric size with thread locking mechanism, is one of the smallest connectors in factory automation industry. It is mainly designed for the application of connecting the 5mm factory automation sensors, signal transmission of the industrial measurement camera and electric bicycles.

Latest circular cable connectors wires for business for industry-1

Latest circular cable connectors wires for business for industry-2

General Information

Connector Serries	M5
Gender	female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-105
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	1A	60V	60V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black	Customized cable ending and length
