Company Advantages
1. The raw materials of APTEK m12 molded cable connectors are procured and selected from reliable vendors in the industry. APTEK makes sure that each connector matches different environmental standards in all countries
2. The product is easy to put up and is portable and reliable, thus it is suitable for most kinds of corporate and ceremonial functions. The modern industrial production at APTEK has increased safety, reliability, and rapid installation
3. m12 right angle connector has got the features of m12 molded cable connectors, which is worthwhile to popularized. Fast delivery is a promise of APTEK: only 2 weeks are needed
4. It is very efficient for m12 right angle connector to reduce the energy cost of m12 molded cable connectors. Even small customized lots could be accepted by APTEK

M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

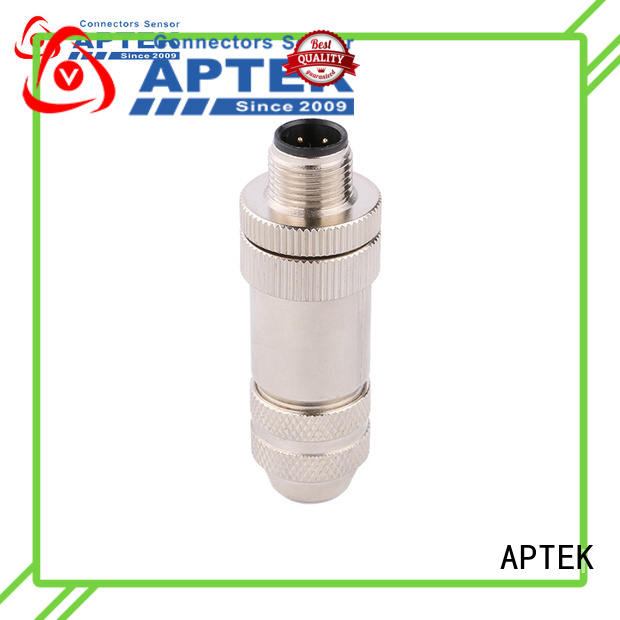

APTEK screw m12 right angle connector manufacturers for industry-1

Dimensions

APTEK screw m12 right angle connector manufacturers for industry-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight
Mounting thread	PG7 or PG9
Standard:	IEC 61076-2-101
Ambient temperature:	-25℃ ~ +80℃
Connector body:	Zinc alloy with nickel plated
Connector insert:	PA + GF
Connector contacts:	Brass with gold plated
Coupling nut/screw:	Brass with nickel plated
Insulation resistance:	≥100 MΩ
Contact resistance:	≤ 5 mΩ
EMI Shielding:	Shielded
Suitable cable Dia:	6.0 ~ 8.0mm
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration

Electrical data & Mechanical data

Contacts	Available Coding			Rated current	Voltage		Wire gauge/size		Wire insulation	Cable ending & length
Contacts	A	B	D	Rated current	A/C	D/C	AWG	mm²	Wire insulation	Cable ending & length
03 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC	Customized cable ending and length
04 pins				4A	250V	250V	18 ~26AWG	0.75~0.14	PVC
05 pins				4A	60V	60V	18 ~26AWG	0.75~0.14	PVC
08 pins				2A	30V	30V	18 ~26AWG	0.75~0.14	PVC

Level and performance

Company Features
1. Since established, Zhongshan Aptek Electronics Technology Co.,Ltd has been committed to the creation, research and development and revenue of m12 right angle connector .
2. Zhongshan Aptek Electronics Technology Co.,Ltd has a number of advanced testing equipment for m12 connector standard .
3. Zhongshan Aptek Electronics Technology Co.,Ltd is committed to developing APTEK into world-renowned brands. Inquire!

y******j

APTEK m12 molded cable connectors is accurately manufactured using state-of-the-art production technology. It is of high elasticity and strong resilience

w******i

APTEK m12 molded cable connectors is manufactured by adopting advanced production technologies. These technologies are constantly updated and improved to meet the industry standards and thus the product can be provided with long-lasting and strong functionality. The product can apply to other items with different materials

o******q

Useful design: m12 connector standard is designed by a group of creative and professional experts based on the findings of their investigation and research of customers' needs. The product has a series of different types of patterns for customers to choose

l******o

The production process of APTEK m12 connector standard is smooth and high-efficiency. The product is of low cost but of great performance for users

h******d

APTEK m12 connector standard is manufactured with countless technology improvements. The product acts as a special protection layer for other items

b******u

m12 connector standard Excellent material selection, full materials, excellent workmanship, reliable quality, and has the advantages of high hardness, good stability, corrosion resistance, not easy to rust, etc., strong and durable.
