M12 sensor/actuator connectors with M12 locking thread for industrial automation, process control and commercial electronics, it is the most commonly used connector in the factory automation. M12 connectors offer various cable connectors, panel mounting receptacles and installable accessories.

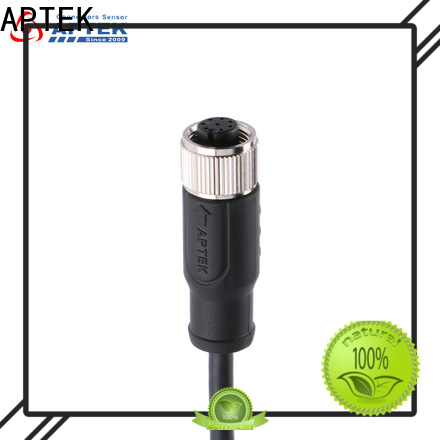

APTEK contacts m12 waterproof connector for sale for packaging machine-1

APTEK contacts m12 waterproof connector for sale for packaging machine-2

General Information

Connector Serries	M12
Gender	Male
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Shielded
IP rating:	IP 67 in locked condition
Locking Design:	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts

Available Coding

Rated current

Voltage

Wire gauge/size

Cable jacket

Wire insulation

Wiring list

Cable ending & length

A/C

D/C

AWG

mm²

02 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-3

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2.WH white

Customized cable ending and length

03 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-4

APTEK contacts m12 waterproof connector for sale for packaging machine-5

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
3.BU blue
4.BK black

04 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-6

APTEK contacts m12 waterproof connector for sale for packaging machine-7

APTEK contacts m12 waterproof connector for sale for packaging machine-8

250V

24AWG

0.34

PUR / PVC

PVC

1.BN brown
2. WH white
3.BU blue
4.BK black

05 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-9

APTEK contacts m12 waterproof connector for sale for packaging machine-10

60V

24AWG

0.35

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey

06 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-11

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink

08 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-12

30V

26AWG

0.25

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red

12 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-13

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black

17 pins

APTEK contacts m12 waterproof connector for sale for packaging machine-14

1.5A

30V

26AWG

0.14

PUR / PVC

PVC

1.BN brown
2.WH white
3.BU blue
4.BK black
5.GY grey
6.PK pink
7.BU blue
8.RD red
9.VT violet
10.NV navy
11.OR orange
12.BK black
13.WH/GN white/green
14.WH/YE white/yellow
15.WH/GY white/grey
16.WH/RD white/red
17.OR orange
