The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.

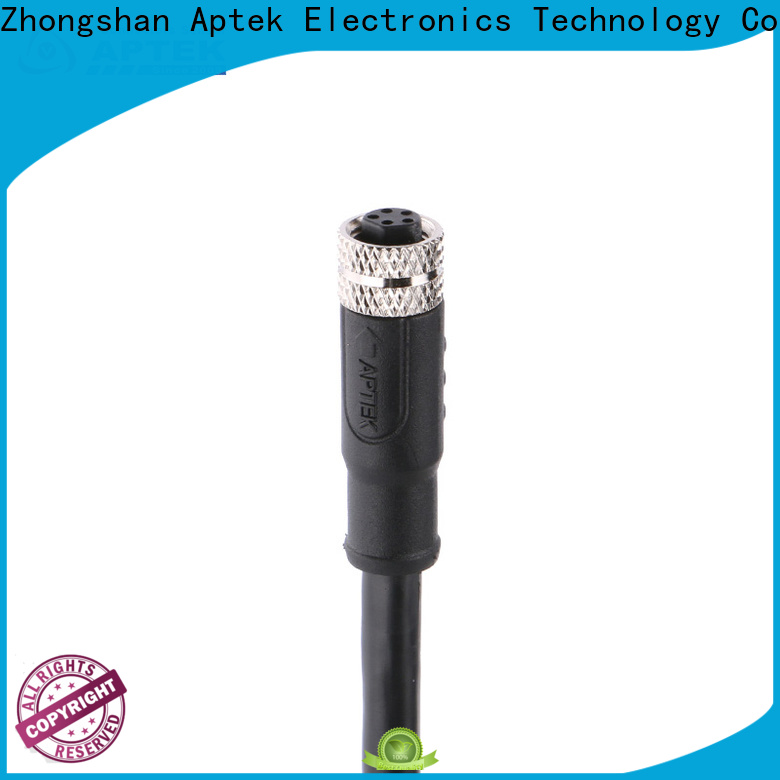

APTEK Top m8 sensor connectors manufacturers for packaging machine-1

APTEK Top m8 sensor connectors manufacturers for packaging machine-2

General Information

Connector Serries	M8
Gender	Female
Locking type	Fix screw
Mounting type	Straight / Right angled
Standard	IEC 61076-2-104
Ambient temperature	-20℃ ~ +80℃
Connector overmold	TPE/ TPU
Connector insert	PA
Connector contacts	Brass with gold plated
Coupling nut/screw	Brass with nickel plated
Insulation resistance	≥100 MΩ
Contact resistance	≤ 5 mΩ
EMI Shielding	Non-Shielded
IP rating	IP 67 in locked condition
Locking Design	Anti-Vibration
Seal / O - ring:	FKM

Electrical data & Mechanical data

Contacts	Coding	Rated current	Voltage		Wire gauge/size		Cable jacket	Wire insulation	Wiring list	Cable ending & length
Contacts	Coding	Rated current	A/C	D/C	AWG	mm²	Cable jacket	Wire insulation	Wiring list	Cable ending & length
03 pins	A-Coding	3A	60V	60V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 3.BU blue 4.BK black	Customized cable ending and length
04 pins	A-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black
05 pins	B-Coding	3A	30V	30V	24AWG	0.25	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey
06 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.BN brown 2.WH white 3.BU blue 4.BK black 5.GY grey 6.PK pink
08 pins	A-Coding	1A	30V	30V	26AWG	0.14	PUR / PVC	PVC	1.WH white 2.BN brown 3.GN green 4.YL yellow 5.GY grey 6.PK pink 7.BU blue 8.RD red

Level and performance

b******p

The margin of error in APTEK m8 cable connector manufacturer manufacturing process is slim. This means less time is wasted fixing mistakes or errors before installation. The product is widely applied in consumer electronics

g******r

Quality assessment is assurance for APTEK m8 cable connector manufacturer quality. Its cutting, sewing, dyeing, and other processes, as well as the use of dyes, antibacterial agents and other chemicals, need to pass the relevant tests. Its assembly process is conducted by a computer, leaving very little room for error

g******j

The package of APTEK m8 cable connector manufacturer will be done with professional materials. It is packaged with hardened carton, foam, cardboard, or wooden box to protect it in an all-around way to minimize transportation damage. It makes the interconnections less bulky

l******z

The tests for APTEK m8 cable connector manufacturer have been conducted. It has been tested in terms of flexibility, durability, accuracy, tolerances, fatigue resistance, etc. The product makes the process of replacing the particular failure components easier

l******f

APTEK m8 sensor connectors is an inter infiltration result of various technologies. It is developed by the R&D team who adopts the mechanical technique, detection and sensing technology, automatic control technology, and servo drive technology. The product reduces the possibility of loose connections or short circuit

s******m

The product features high dimension accuracy. During the inspection stage, its sizes have been scrutinized and tested by different measuring tools to make sure zero dimension error. Its simple design makes it easier for users to maintain and manipulate
