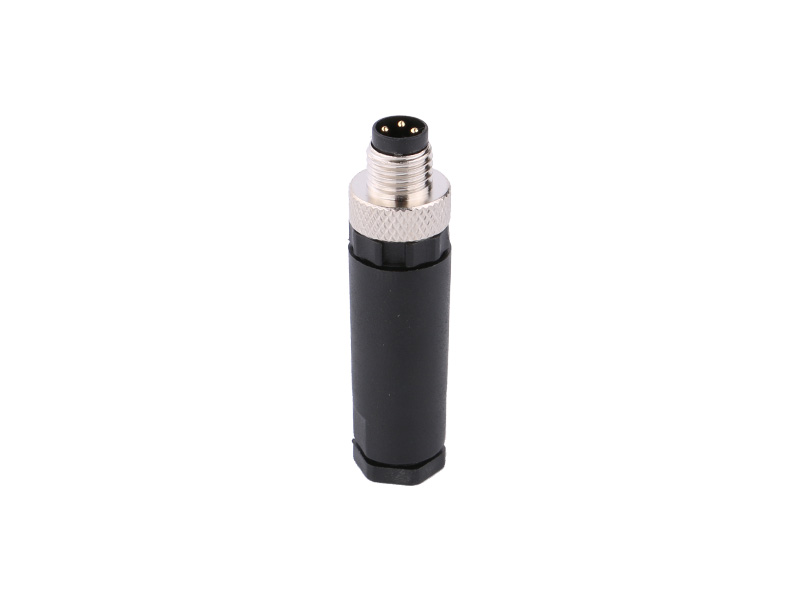

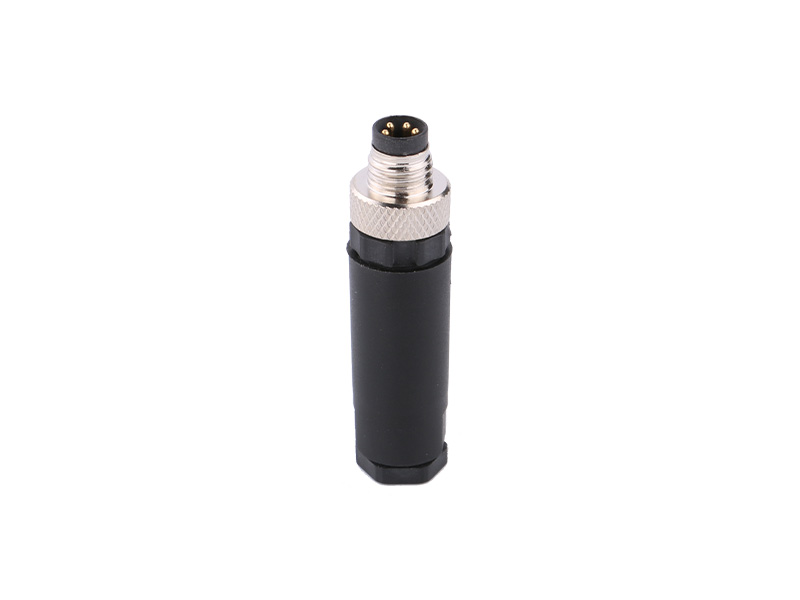

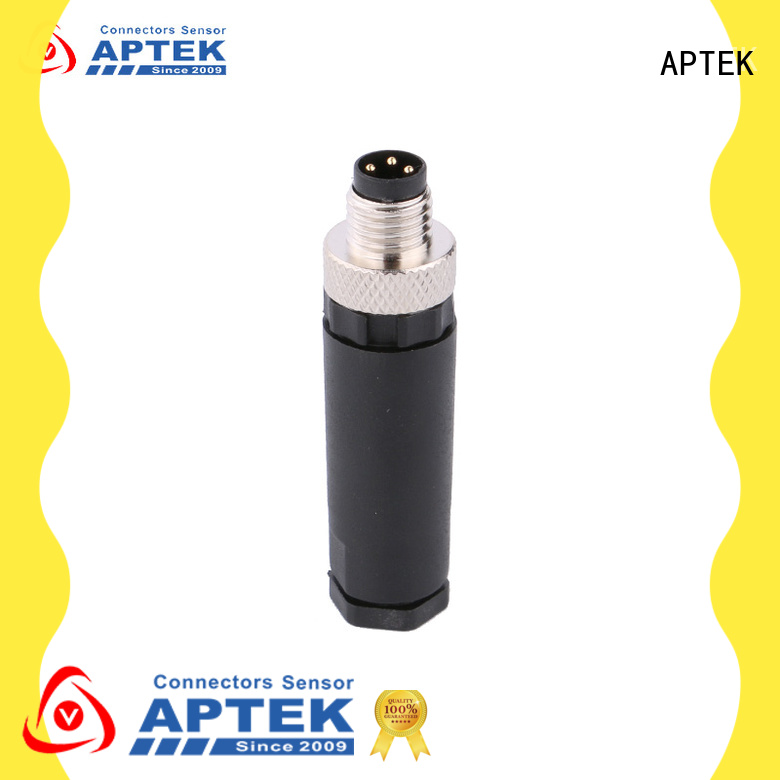

APTEK superior quality panel mount circular connector with pcb contacts for packaging machine
Connector Series:
M8
Locking type:
Fix screw
Mounting type:
Straight
Standard:
IEC 61076-2-104
Connector overmold:
PA + GF
Coupling nut/screw:
Brass with nickel plated
Locking Design:
Anti-Vibration
Product Comparison
Aptek's industrial cable connectors is manufactured in strict accordance with relevant national standards. Every detail matters in the production. Strict cost control promotes the production of high-quality and priced-low product. Such a product is up to customers' needs for a highly cost-effective product.Aptek guarantees cable connector manufacturer to be high-quality by carrying out highly standardized production. Compared with other products in the same category, it has the following advantages.
1. APTEK panel mount circular connector adopts a number of techniques to satisfy production requirements.
2. The product is not prone to forming bacteria on its surface. The materials used have long term antibacterial properties that reduce the potential for bacterial growth.
3. Zhongshan Aptek Electronics Technology Co.,Ltd has abundant funds and strong scientific manpower.
The series of M8 circular connector provides a wide range of metric M8 connectors for small sensors and actuators. The connector of 8mm metric size with thread locking mechanism, is one of the most commonly used connectors in factory automation, ideally suited for industrial control networks where small sendos are required.
General Information
| Connector Serries | M8 |
| Gender | Male |
| Locking type | Fix screw |
| Mounting type | Straight |
| Standard | IEC 61076-2-104 |
| Ambient temperature | -25℃ ~ +80℃ |
| Connector overmold | PA + GF |
| Connector insert | PA + GF |
| Connector contacts | Brass with gold plated |
| Coupling nut/screw | Brass with nickel plated |
| Insulation resistance | ≥100 MΩ |
| Contact resistance | ≤ 5 mΩ |
| EMI Shielding | Non-Shielded |
| Suitable cable Dia: | 3.5 ~ 5.0mm |
| IP rating: | IP 67 in locked condition |
| Locking Design: | Anti-Vibration |
Electrical data & Mechanical data
| Contacts | Coding | Rated current | Voltage | Wire gauge/size | Wire insulation | Cable ending & length | |||
| A/C | D/C | AWG | mm² | ||||||
| 03 pins | A-Coding | 3A | 60V | 60V | 22~26AWG | 0.34~0.14 | PVC | Customized cable ending and length | |
| 04 pins | A-Coding | 3A | 60V | 60V | 22~26AWG | 0.14~0.34 | PVC | ||
Level and performance
Company Features
1. Zhongshan Aptek Electronics Technology Co.,Ltd is a high-tech export-oriented enterprise specializing in R&D, production and sales of m8 circular metric connectors .
2. Zhongshan Aptek Electronics Technology Co.,Ltd includes a set of skilled designers, sales team and so on.
3. It has been found that the culture of m8 field wireable connector plays an important role in the development of APTEK. Ask online! panel mount circular connector is the motto of APTEK Group. Ask online! Zhongshan Aptek Electronics Technology Co.,Ltd will stick to using the first-class technology, first-class management, first-class products and first-class service to return customer. Ask online! With m8 bulkhead connector being its service ideology, Zhongshan Aptek Electronics Technology Co.,Ltd provides m8 male connector . Ask online!
